Rotted Shed Door Repair in Chicago

This completed project shows a shed door repair in Chicago where the lower sections of the double doors were badly worn, peeling, and rotted from exterior exposure. The red backyard shed still had a usable structure, but the white door trim, bottom rails, latch area, and lower cross-brace sections needed repair before the doors could be cleaned up and reinstalled.

Evo Home Repair handled this as a practical exterior carpentry repair: inspect the visible damage, remove the damaged doors, cut out and rebuild weak wood sections, prepare new lumber, refit the door rails and trim, sand and prep the surfaces, repaint the repaired areas, and reinstall the double shed doors so the shed could close properly again.

Project Overview

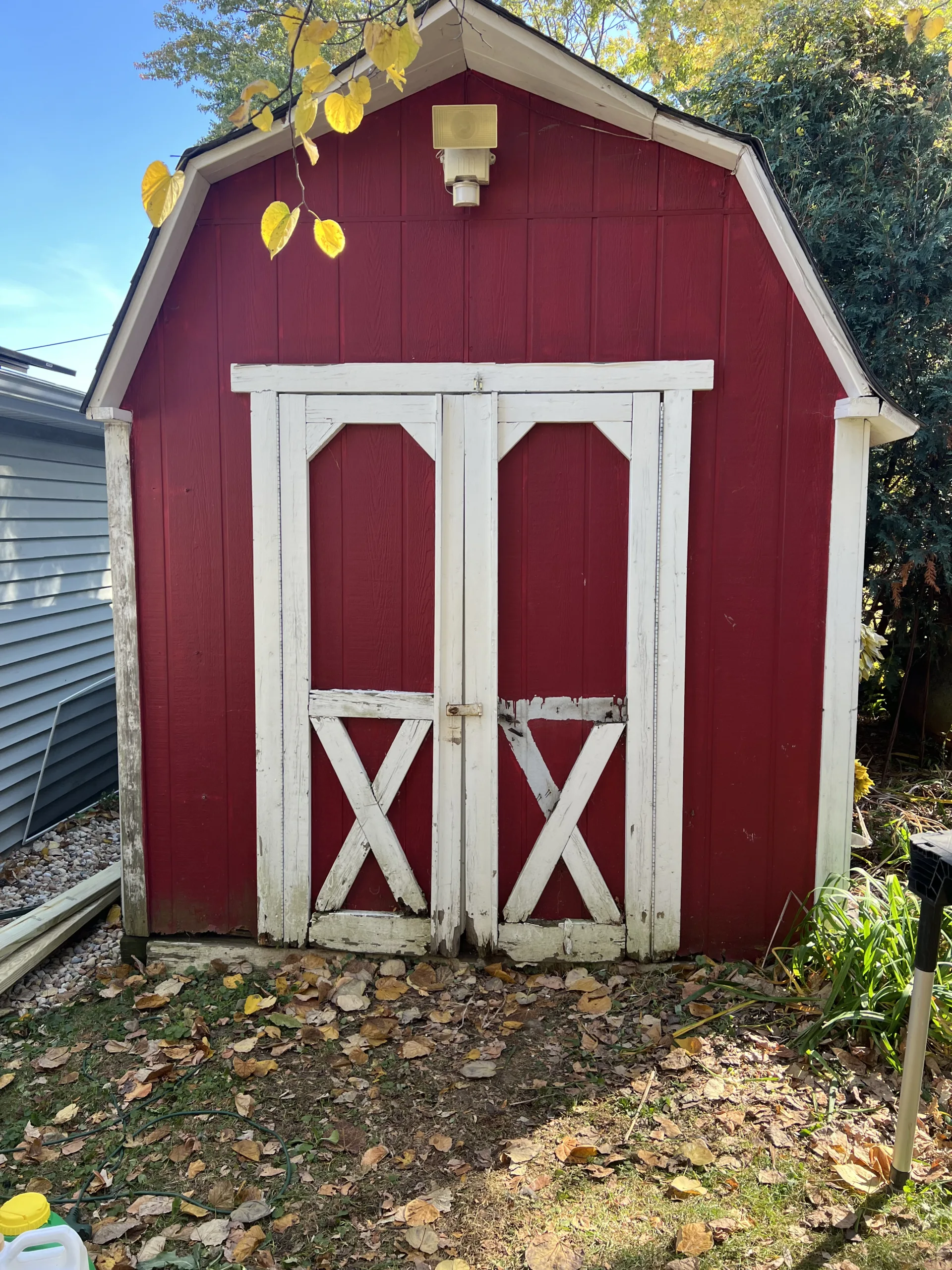

The shed had red exterior siding with white double barn-style doors. The main problem was concentrated around the bottom of the doors and lower trim areas. The paint was peeling, the latch area showed rust and wear, and several lower wood sections had visible rot and deterioration.

Instead of replacing the entire shed, the project focused on repairing the damaged door components and restoring the front opening so the doors could function and look cleaner. This type of small exterior carpentry repair is common on backyard sheds in the Chicago area because rain, snow, freeze-thaw cycles, and ground moisture often damage the lower door rails first.

Before / Initial Problem

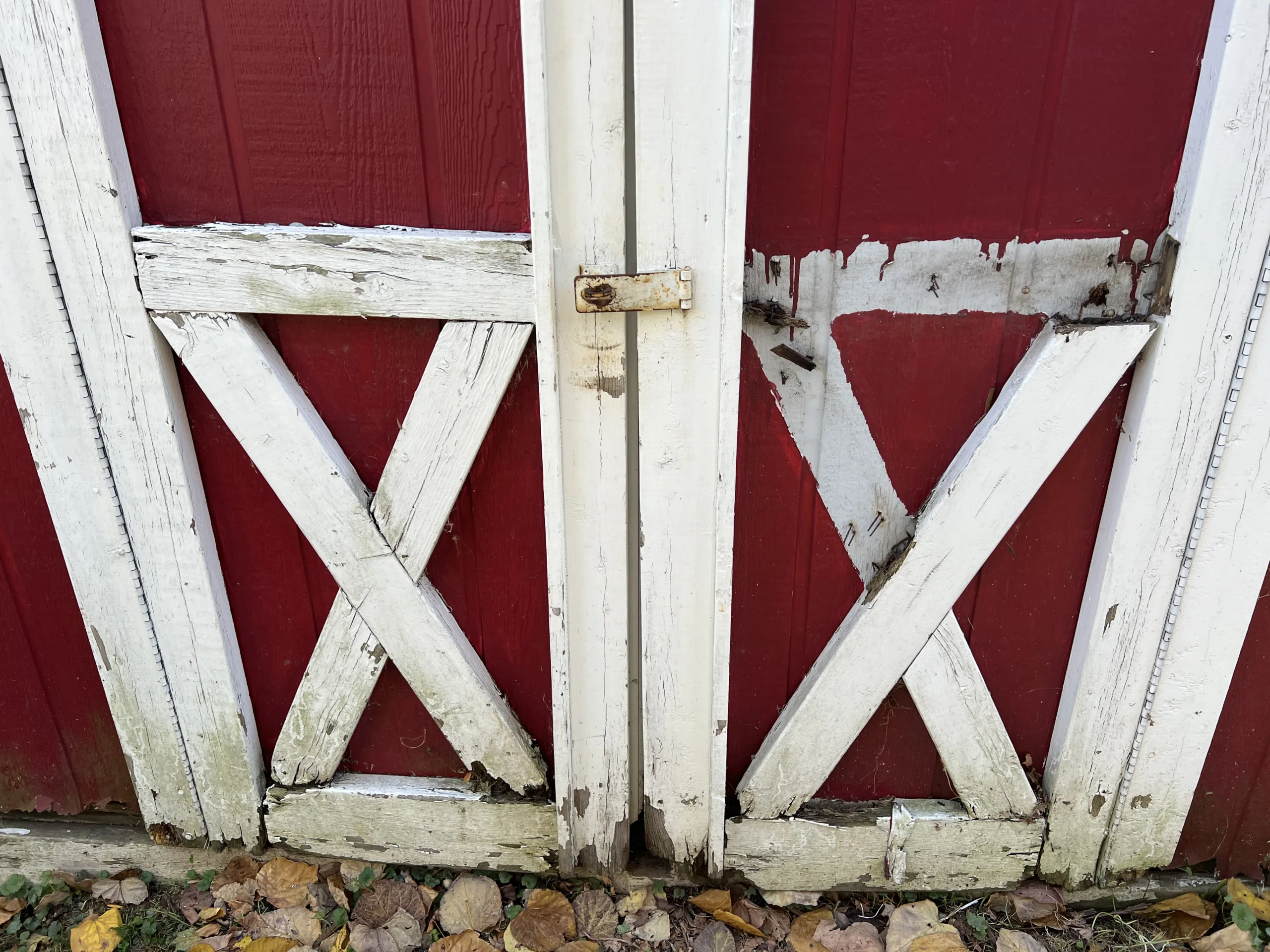

The close-up inspection showed the main failure points clearly. The bottom rail and lower cross-brace sections were deteriorated, the lower trim had paint loss and softened wood, and the latch area had rust staining. The doors were still present, but the lower sections were no longer in good condition.

For shed doors, this type of damage usually starts at the bottom because that area gets the most water exposure. Leaves, soil, splashback, snow, and poor air movement near the ground can keep the lower wood wet longer than the upper door sections.

Inspection / Why Repair Was Needed

The visible damage was not just cosmetic. When the lower rails and brace sections start to rot, the doors can lose strength, drag, sag, split, or stop closing correctly. The repair needed to address the damaged wood, not just cover it with paint.

The practical repair approach was to remove the doors from the shed opening, work on them flat, replace the weak wood sections, rebuild the lower door structure where needed, and then repaint the repaired areas before reinstalling the doors.

Work Process

1. Door Removal and Work Area Setup

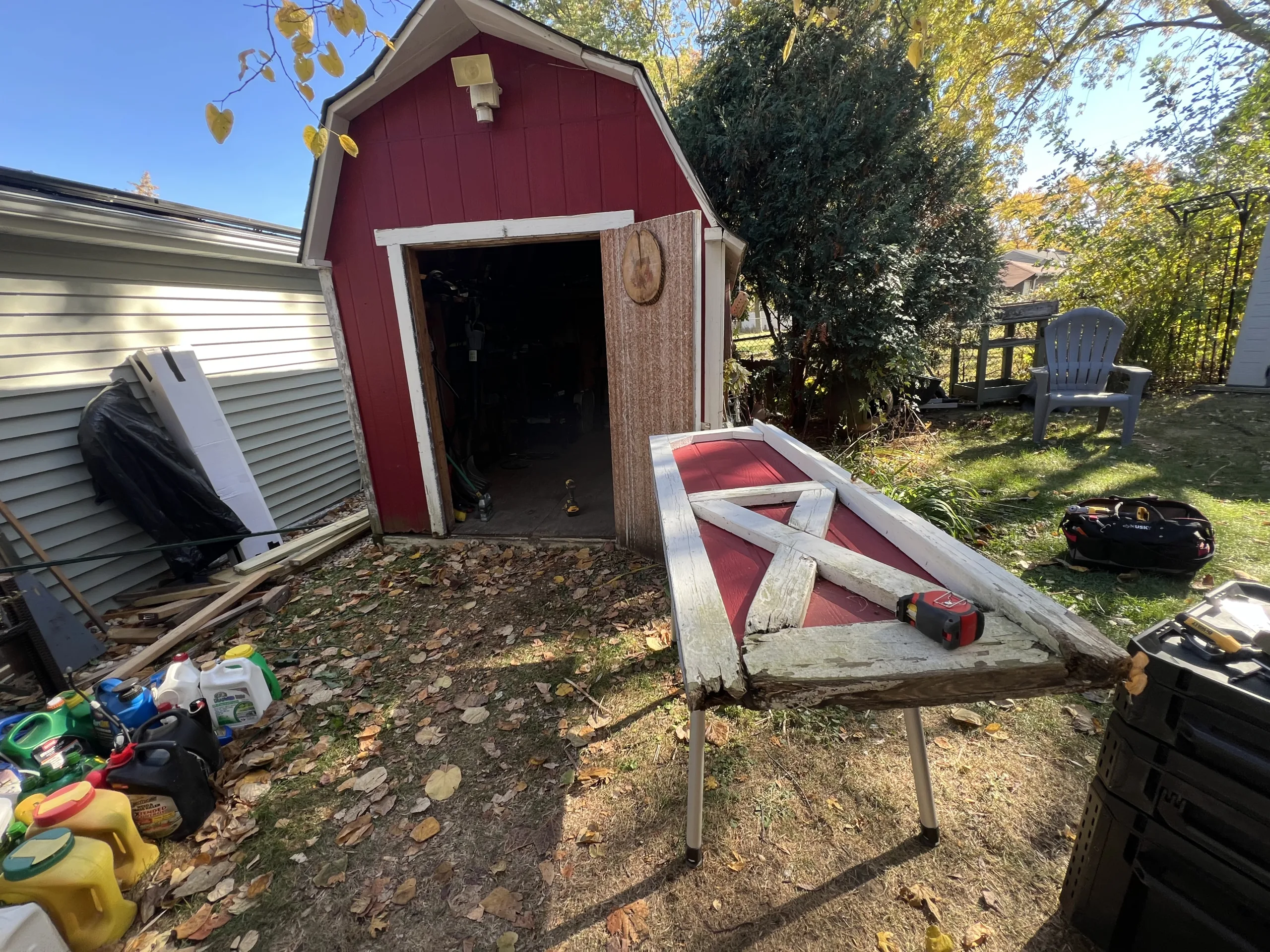

The damaged double doors were removed from the shed so the repair could be done properly. Working on the doors while they were still hanging would have made it harder to cut, fit, fasten, sand, and paint the lower sections cleanly.

After removal, the doors were placed on a temporary work surface in the yard. This made it easier to inspect the edges, lower rail, cross-braces, and trim from different angles before fitting new wood pieces.

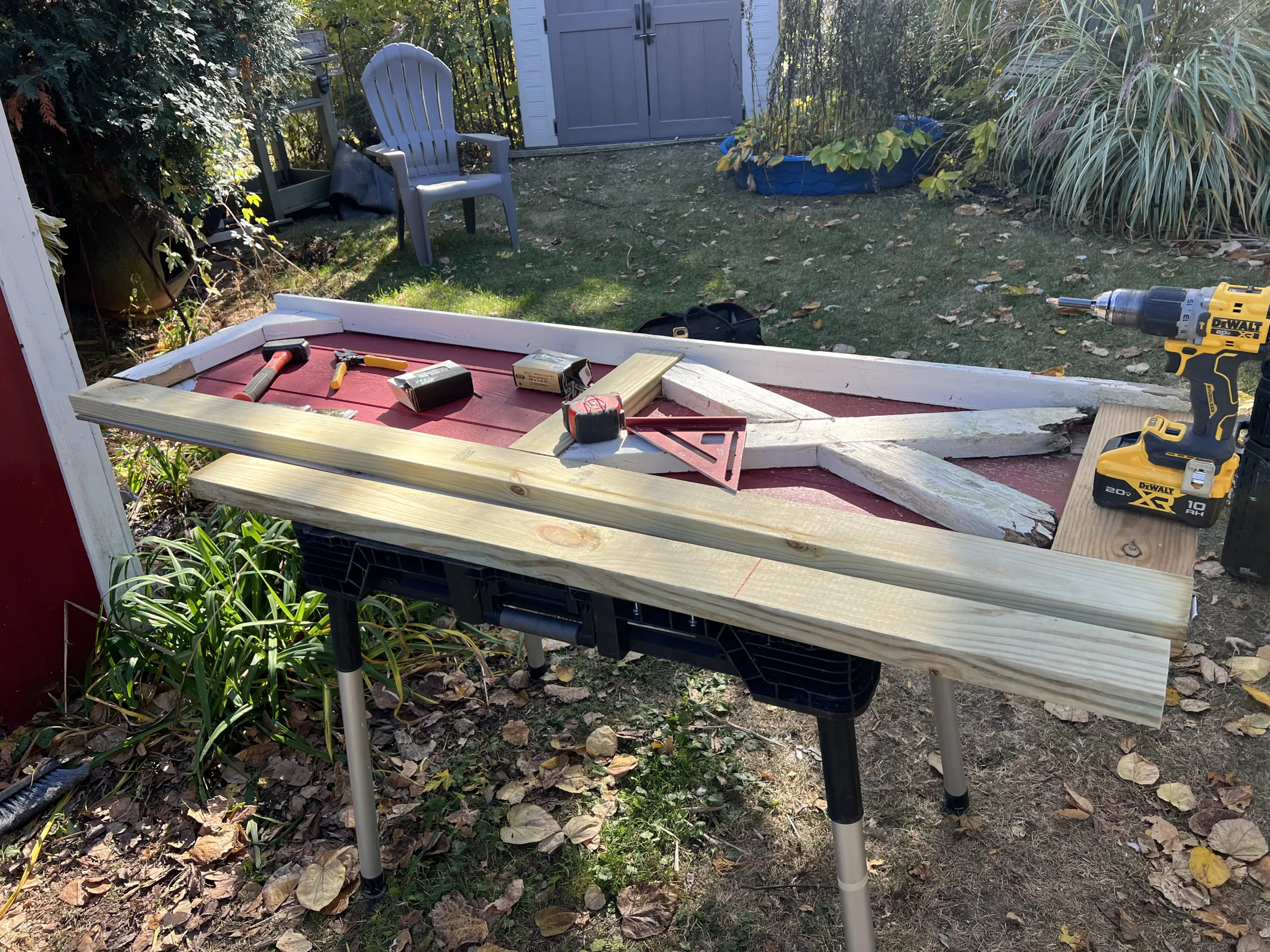

2. Cutting Out Weak Wood and Preparing New Lumber

The weak and rotted sections were removed or reinforced as needed. New exterior-grade lumber was prepared for the lower rails and framing areas. The goal was to rebuild the damaged portions while keeping the original barn-style door design.

Because the doors had diagonal “X” braces and a simple shed-door frame layout, the repair had to keep the original geometry aligned. If the new lower rail or brace pieces are not fitted correctly, the doors can twist, bind, or leave uneven gaps after reinstallation.

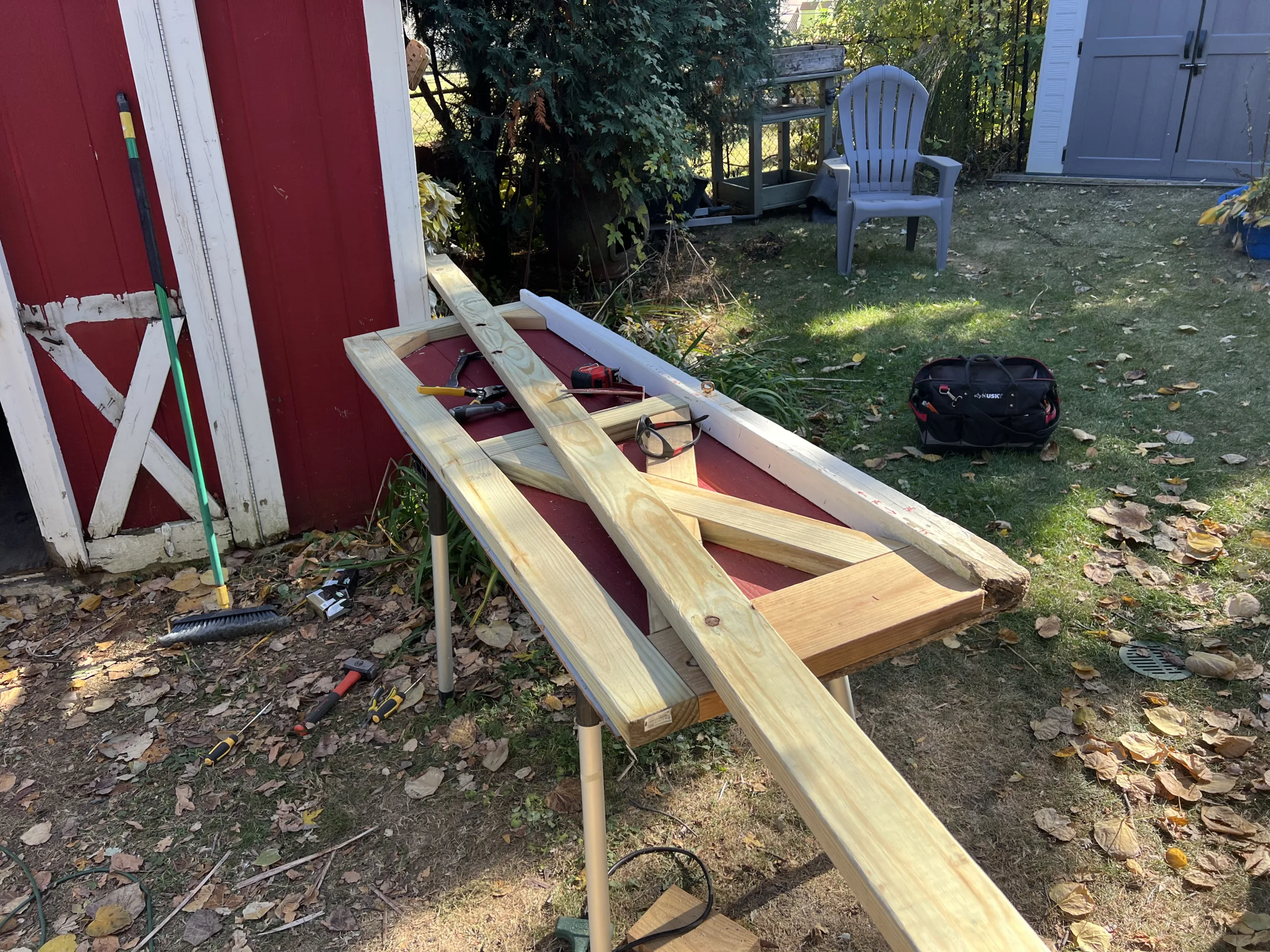

3. Rebuilding the Lower Rails and Door Frame Areas

New wood pieces were fitted into the damaged lower sections of the doors. This included rebuilding the lower rail areas and tying the repair back into the existing door structure. The repair work kept the original red-and-white barn-door appearance while replacing the most deteriorated wood.

The work included checking the door shape, cutting pieces to size, fastening the new wood, and preparing the surface for repainting. This kind of repair is more involved than a quick patch because the door still needs to swing, line up, and latch after the wood repair is complete.

4. Sanding, Surface Prep, and Repainting

After the wood repair was complete, the repaired areas were sanded and prepared for paint. Loose paint, rough edges, old damaged surfaces, and newly installed lumber had to be blended so the finished doors would look cleaner and more consistent.

The repaired white trim and door-frame sections were repainted to match the existing shed style. The red door panels remained part of the original design, while the white trim, rails, and braces were cleaned up visually after the repair.

5. Reinstalling the Shed Doors

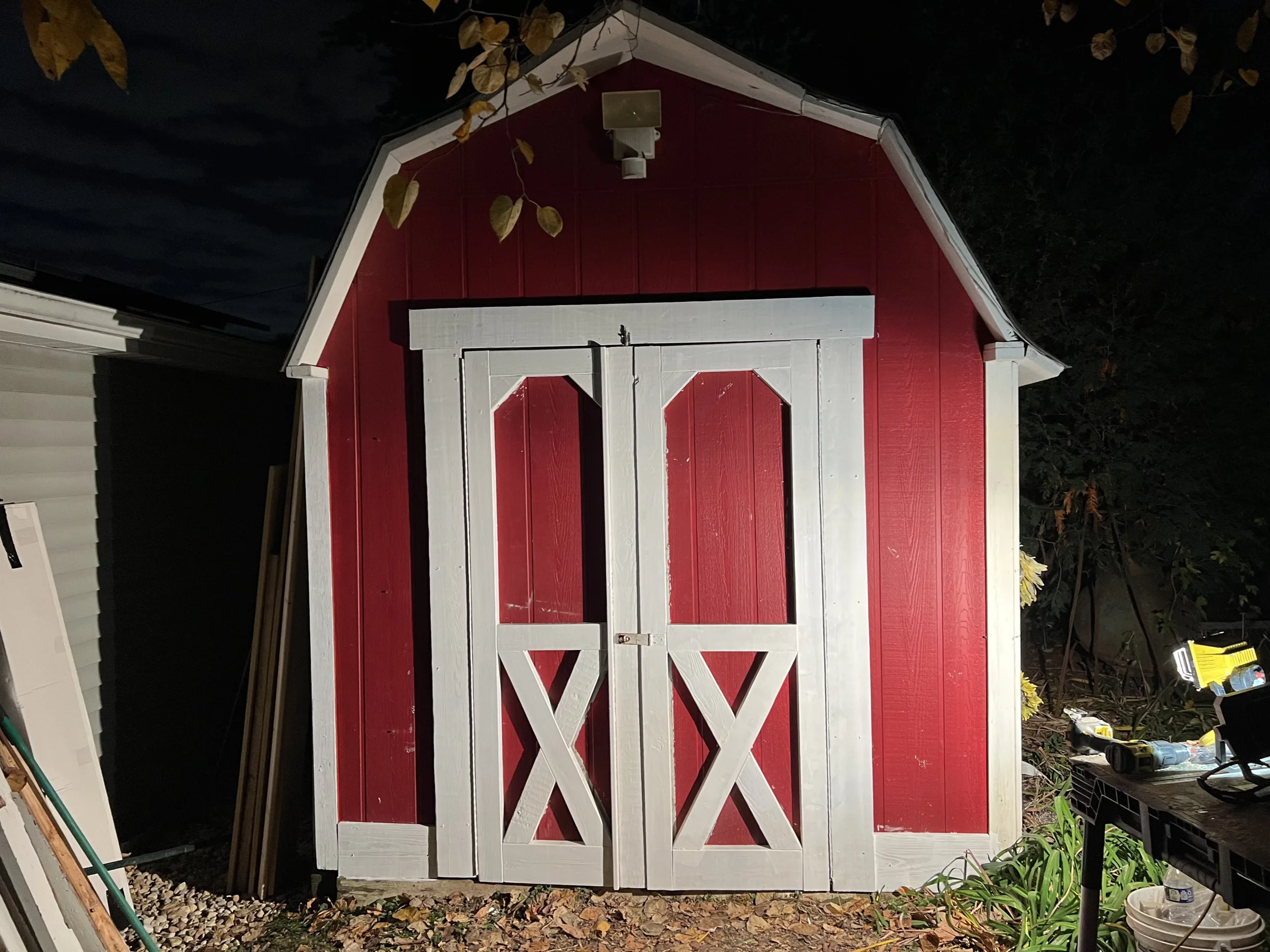

After the repair and repainting work, the doors were reinstalled on the shed. The finished photo shows the repaired white trim, rebuilt lower sections, cleaner door edges, and improved front appearance.

Reinstallation is important because shed doors have to be more than visually repaired. They need to hang properly, close together, line up with the latch, and leave enough clearance at the ground so the same lower-door problem does not immediately return.

Finished Result

The finished repair preserved the original red shed and white barn-door style while replacing the most damaged lower wood sections. The repaired doors look cleaner from the front, the lower rails are no longer left with exposed rotten wood, and the white trim has a refreshed painted finish.

This project is a good example of a practical repair instead of unnecessary full replacement. When the main shed body is still usable and the damage is concentrated in the doors, targeted exterior carpentry can extend the life of the shed and improve the appearance of the yard.

Common Problems This Project Can Help With

• Rotted shed door bottom rails
• Peeling paint on exterior shed doors
• Soft or damaged lower door trim
• Rust stains around latch hardware
• Loose or damaged barn-style cross braces
• Shed doors that drag, sag, or do not close correctly
• Outdoor wood damage from rain, snow, splashback, and ground moisture
• Small exterior carpentry repairs before repainting

When Shed Door Repair Makes Sense

Shed door repair makes sense when the damage is limited to the doors, lower rails, trim, latch area, or a few replaceable wood sections. If the shed frame is still stable and the door opening is not severely out of square, repairing the doors can be more practical than replacing the entire shed.

Repair may also make sense when the owner wants to keep the existing look of the shed. In this project, the original red-and-white barn-door style was kept while the damaged wood areas were rebuilt and cleaned up.

When Additional Review May Be Needed

This project page describes visible shed door repair and exterior carpentry work only. Additional review may be needed if damage extends beyond the doors.

• If the shed wall framing, jambs, sill plate, floor, or foundation area is rotted, more extensive structural repair may be needed.
• If the shed is leaning, sinking, or severely out of square, door repair alone may not solve the closing problem.
• If old paint may contain lead, testing or proper handling may be needed before sanding or scraping.
• If mold, pests, or hidden moisture damage are suspected, further inspection may be needed.
• If exterior lighting, wiring, or power near the shed needs repair, a licensed electrician may be required.
• If the door opening is too damaged to hold hinges securely, full door-frame repair or replacement may be more practical.
